It makes drawing cubes, prisms, cones and pyramids easy.
- Three step process Select a solid figure
- 1.Using template O,
- trace its outline
- 2.Align template L
- to the outline
- 3.Using template L
- trace the edges
- and sides

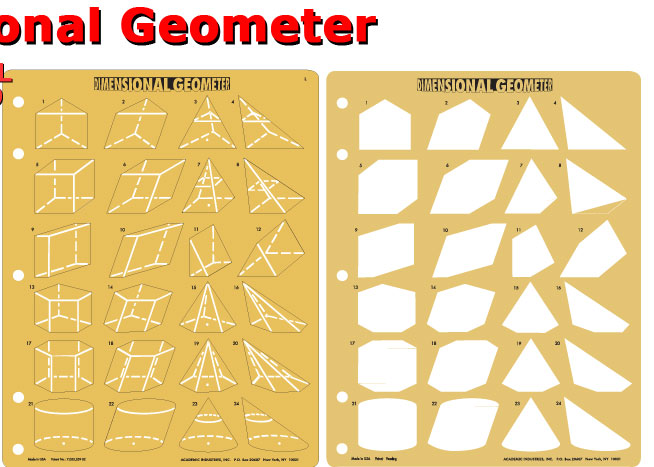

Template L: Edges and sides
Template O: Outlines
The Dimensional Geometer includes the following solid figures:
- 1-4. Triangular prisms and pyramids
- 5-8. Cubes and square pyramids
- 9-12 Rectangular prisms and pyramids
- 13-16. Pentagonal prisms and pyramids
- 17-20. Hexagonal prism and pyramids
- 21-24. Cylinders and cones
SPECIFICATIONS FOR EACH TEMPLATE: 7 3/4 x 9 3/4; .015 thickness; lightly tinted orange; non glare surface; rounded corners; figures numbered
